combiflex bibs

combiflex BIBS at a glance
Functions, advantages & possible applications

Advantages

Advantages of the combiflex bibs care bed:

  • 33 - 77 cm height adjustment range
  • Loadable with 220 kg safe working load
  • Premium model of the two bed-in-bed systems with extended functions
  • Comfort sitting position and leg recline included as standard
  • Long back bar and mattress equaliser integrated for comfort

Standard equipment

Standard equipment for combiflex bibs care bed:

  • SMPS plug-in transformer with safety extra-low voltage
  • Leg low position
  • Comfort seat position
  • Locking function in the handset
  • 775 mm back section with mattress leveller
  • Mattress frame for widening to 100 cm / by 10 cm
  • Feet with floor levelling screw

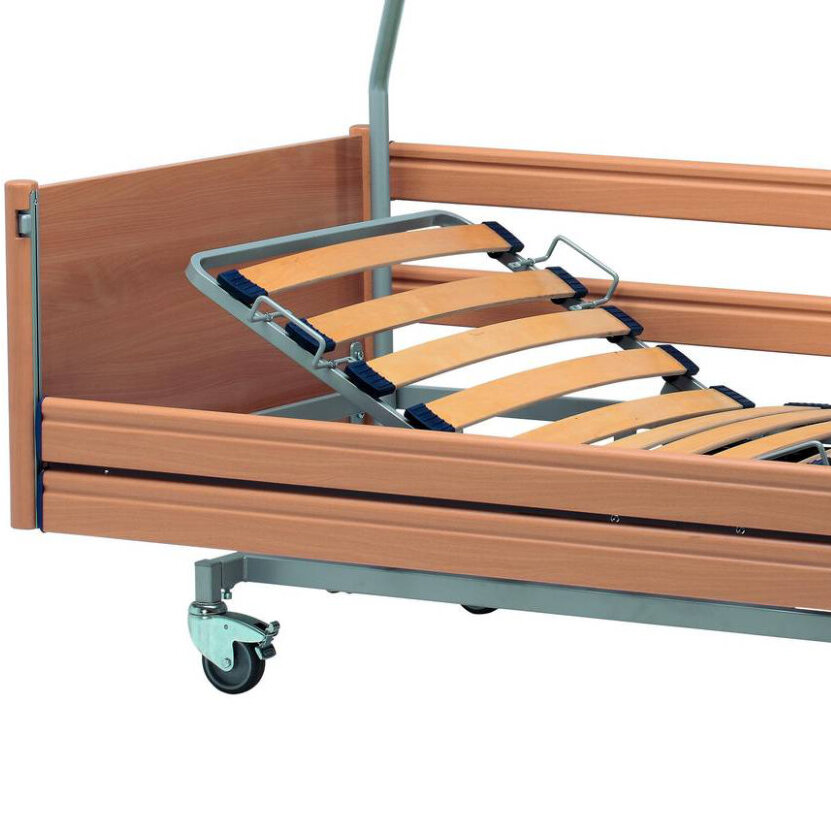

  • Springwood slats with zone reinforcement

Technical data

Technical data:

  • Total weight: 75 kg
  • Lying surface dimensions: 90 / 100 x 190 / 200 cm
  • Fixed dimensions: 89 x 187 / 197 cm
  • Safe working load: 220 kg
  • Max. Max. person weight: 185 kg
  • Height adjustment: 33 - 77 cm
  • Lift can be lowered: 11 cm
  • Motors: Splash water protection to IPX4, high-quality spiral cable with strain relief
    and kink protection, as well as SMPS plug-in transformer with safety extra-low voltage
  • Accessory number
    • GKV: 19.40.03.0033
    • Care insurance fund: 50.45.03.0033
  • Equipment variants:
    • Item no. 291 combiflex bed insert
    • Item no. 292 wooden conversion (end pieces, safety sides)
    • Item no. 293 combiflex care bed (bed insert, wooden conversion, trapeze bar, castors)
  • Mattress base: 4-section

Safety guarantees:

  • Primary fuse in mains plug
  • Secondary fuse/polyswitch
  • Thermal fuse
  • Locking device
  • Fail-safe manual switch
  • Special spiral mains cable
  • Strain relief on power cable and kink protection
  • IPX4 moisture protection

How to reach us

Downloads

All information at a glance

Here you will find product brochures, technical data and other information material on combiflex BIBS as PDF files - easy to download, save or print.

Download link
