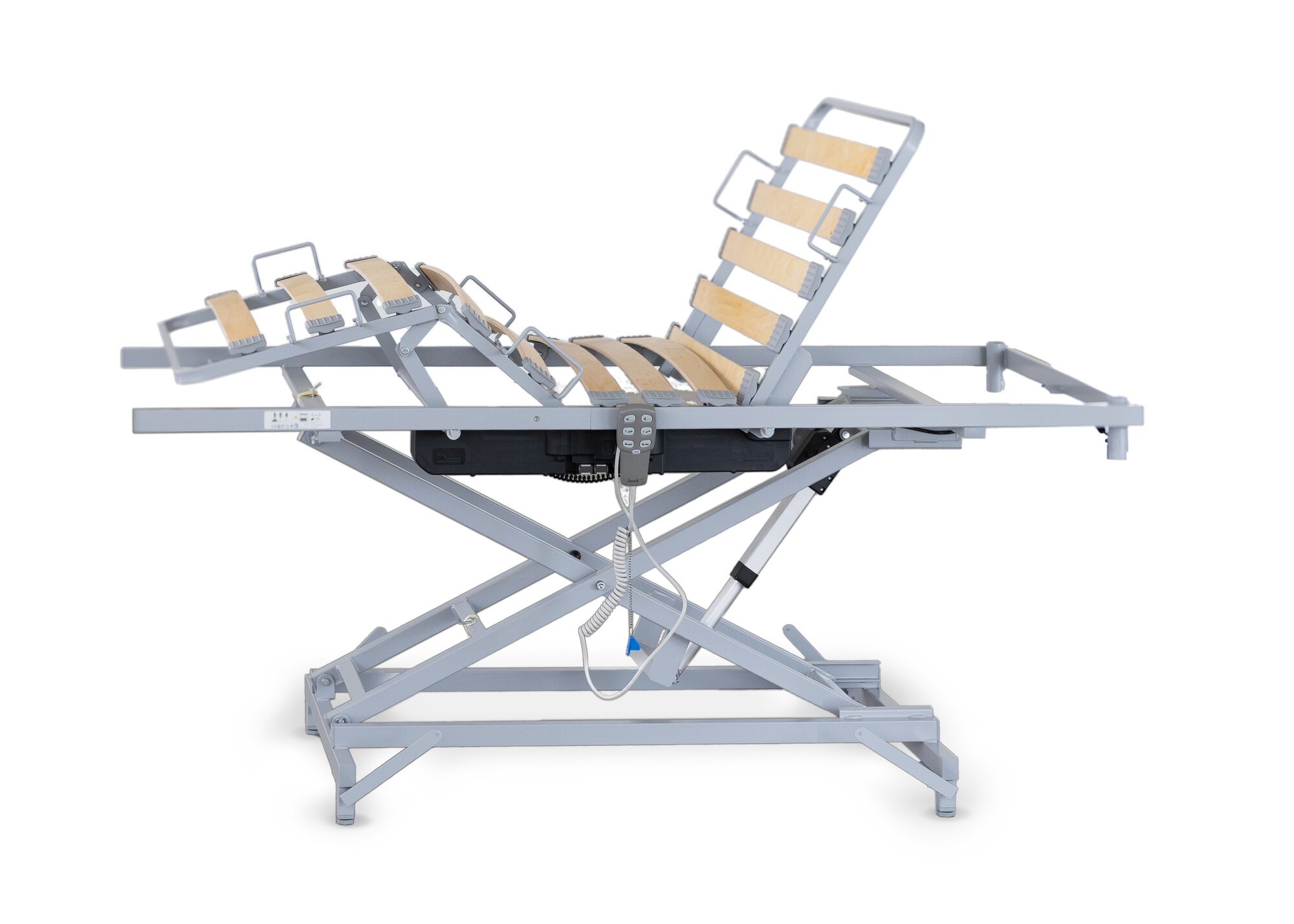

belluno BIBS at a glance
Functions, advantages & possible applications

Advantages

Advantages of the belluno BIBS care bed:

  • 31 - 75 cm height adjustment range
  • Loadable with 200 kg safe working load
  • Solid standard model of the two bed-in-bed systems
  • Quick and easy assembly guaranteed

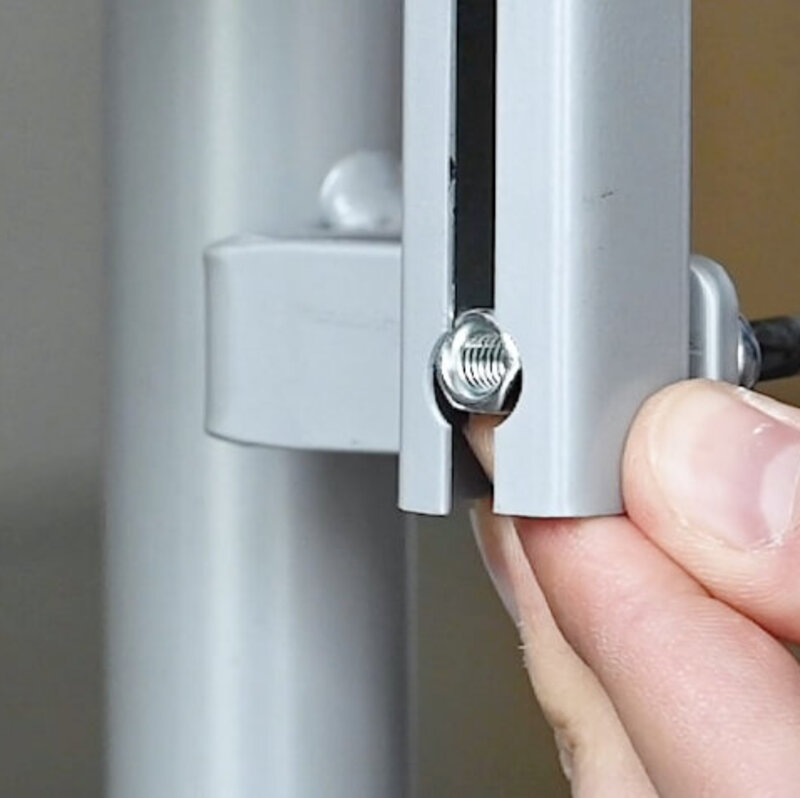

  • Can be assembled by a single person thanks to the sophisticated plug-in system
  • Lying surface divided into two parts that are assembled individually. This saves effort during assembly
  • Low overall weight and low weight of the individual components

Standard equipment

Standard equipment for belluno BIBS care bed:

  • SMPS plug-in transformer with safety extra-low voltage
  • Feet with floor levelling screws for free-standing assembly
  • Wooden spring slats
  • Mattress frame for widening to 100 cm/by 10 cm

Technical data

Technical data:

  • Total weight: 65 kg
  • Lying surface dimensions: 90/100 x 190 cm or 200 cm convertible
  • Fixed dimensions: 89 x 187 cm or 197 cm
  • Safe working load: 200 kg
  • Max. Max. person weight: 165 kg
  • Height adjustment: 31 - 75 cm
  • Lift can be lowered: 11 cm
  • Motors: Splash-proof to IPX4, high-quality spiral cable with strain relief and kink protection, as well as SMPS plug-in transformer with safety extra-low voltage
  • Auxiliary numbers
    • GKV: 19.40.03.0018
    • Care insurance: 50.45.03.0018
  • Lying surface: 4-section

Safety guarantees:

  • Primary fuse in mains plug
  • Secondary fuse/polyswitch
  • Thermal fuse
  • Locking device
  • Special spiral power cable
  • Strain relief on power cable and kink protection
  • Moisture protection IPX4

How to reach us

All videos at a glance

Downloads

All information at a glance

Here you will find product brochures, technical data and other information material on the belluno bibs as PDF files - easy to download, save or print.
