combiflex bibs bed-in-bed system

combiflex bibs bed-in-bed system at a glance
Functions, advantages & possible applications

Advantages

Advantages of the combiflex bibs bed-in-bed system:

  • 33 - 77 cm height adjustment range
  • Can be loaded with a safe working load of 220 kg
  • Premium model of the two bed-in-bed-systems with extended functions
  • Comfort sitting position and leg recline included as standard
  • Long backrest bar and mattress compensation integrated for comfort

Standard equipment

Standard equipment for combiflex bibs bed-in-bed system:

  • SMPS plug-in transformer with safety extra-low voltage
  • Leg low position
  • Comfort seat position
  • Lock function in the hand control
  • 775 mm back rest with mattress compensation
  • Mattress frame for widening to 100 cm / by 10 cm
  • Feet with floor levelling screw
  • Wooden slats with zone reinforcement

Technical data

Technical data:

  • Total weight: 75 kg
  • Lying surface dimensions: 90 / 100 x 190 / 200 cm
  • Fixed dimensions: 89 x 187 / 197 cm
  • Safe working load: 220 kg
  • Max. Max. person weight: 185 kg
  • Height adjustment: 33 - 77 cm
  • Lifter space: 11 cm
  • Motors: Water resistant to IPX4, high-quality spiral cable with strain relief
    and kink protection, as well as SMPS plug-in transformer with safety extra-low voltage
  • Accessory number
    • GKV: 19.40.03.0033
    • Care insurance fund: 50.45.03.0033
  • Equipment variants:
    • Item no. 291 combiflex bed insert
    • Item no. 292 wooden conversion (end panels, side rails)

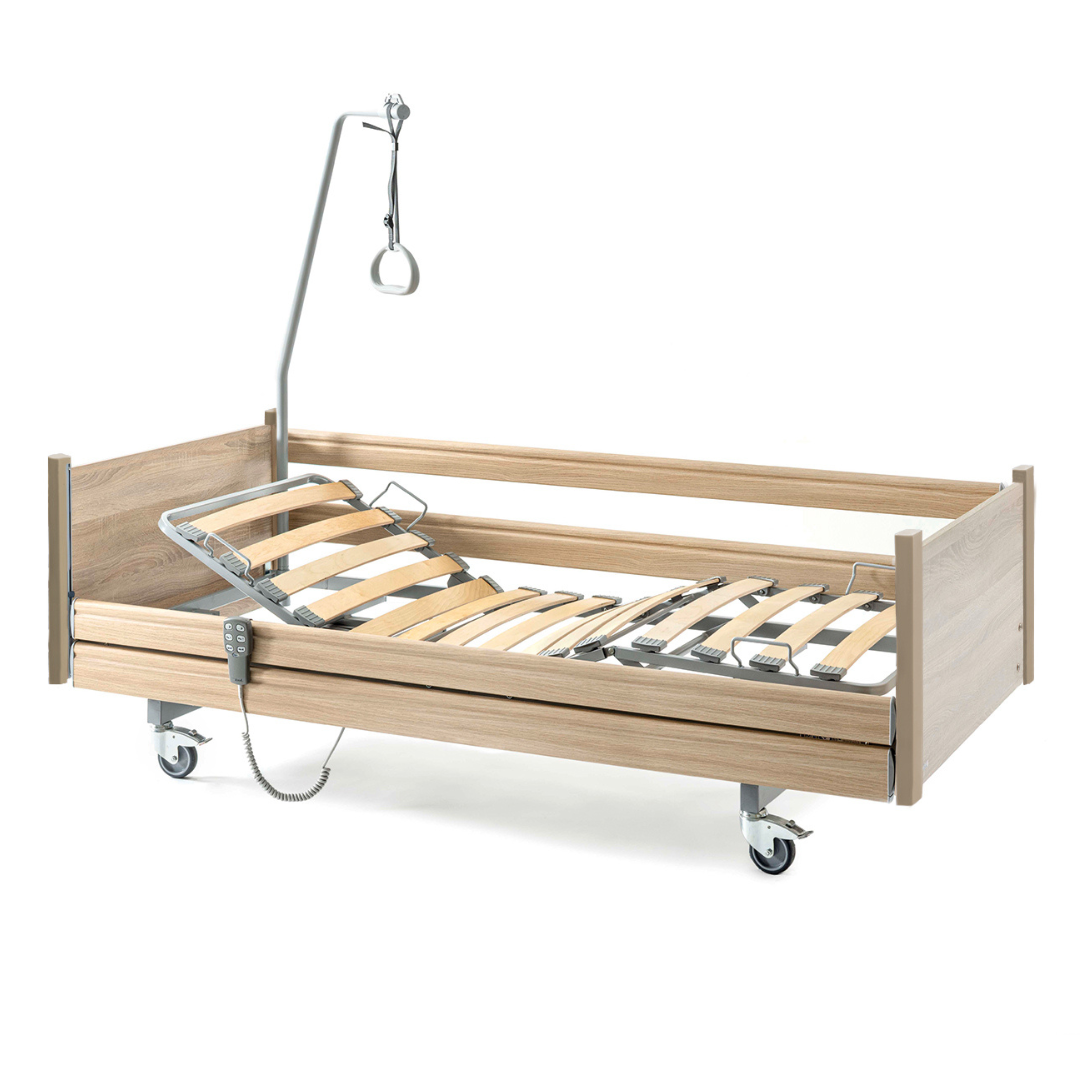

    • Item no. 293 combiflex nursing care bed (bed insert, wooden conversion, lifting pole, castors)
  • 4-section lying surface

Safety features:

  • Primary fuse in power plug
  • Secondary fuse/polyswitch
  • Thermal fuse
  • Locking device
  • Fail-safe hand control
  • Special spiral mains cable
  • Strain relief on mains cable and kink protection
  • Moisture protection IPX4

How to reach us

Downloads

All information at a glance

Here you will find product brochures, technical data and other information material on the combiflex bibs bed-in-bed system as PDF files - convenient for downloading, saving or printing.

Download link
