domiflex® 3
family

domiflex® 3 at a glance
Functions, advantages & possible applications

Advantages

Advantages of the domiflex® 3 care bed:

  • 35 - 80 cm height adjustment range - Safe entry and exit thanks to optimum adjustment

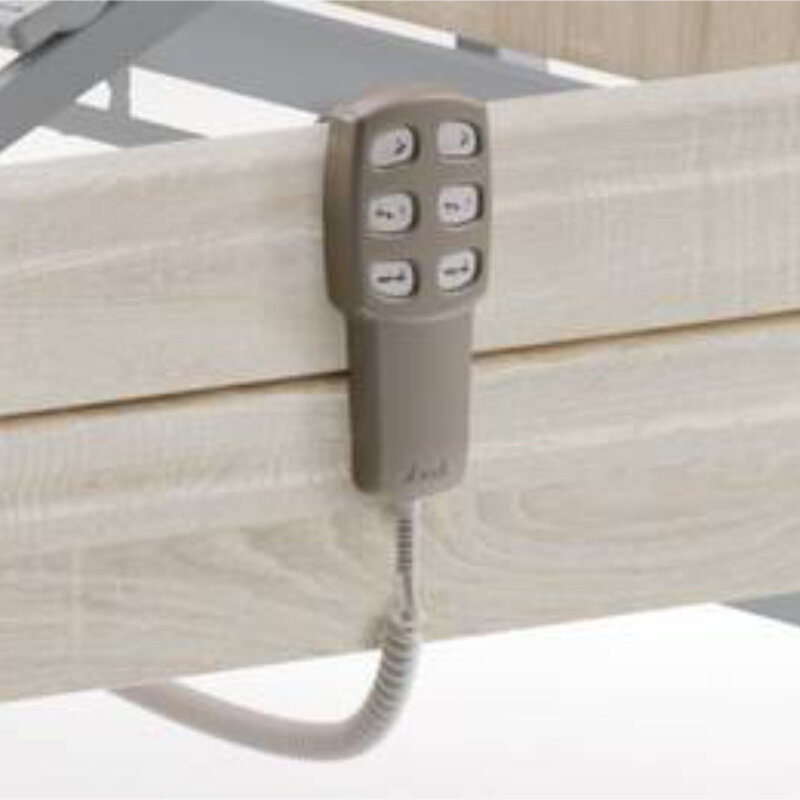

  • Ergonomic, wired handset - With locking function and pleasant feel for intuitive operation
  • Two stylish decors - Choose between modern light Sonoma oak or classic steamed beech
  • Resilient and stable - Up to 155 kg patient weight as standard, safe working load up to 190 kg



Perfect for the medical supply trade:

  • Space-saving transport and storage system - NEW: Bracket for a transport system that remains fixed to the bed
  • Tool-free assembly & disassembly - Quick assembly and disassembly with NEW lighter assemblies
  • Can be flexibly converted as a heavy-duty bed - Can be loaded up to 185 kg patient weight / 220 kg safe working load by means of a reinforcement strut
  • Extensive range of accessories - For optimum patient care
  • Extendable to 220 cm - Tool-free and in a few simple steps
  • Optional washability - Hygienic cleaning for the professional medical supply trade



Why the domiflex® 3?

  • Ideal for the care sector and private care at home
  • Ergonomic design for maximum comfort and safety
  • Easy transport, assembly and handling

Standard equipment

Standard equipment of the domiflex® 3 care bed:

  • Raiser with triangular handle
  • Integrated, full-length safety side SR3 for optimum protection
  • Space-saving transport and storage system enables easy handling
  • Full panelling inside
  • 4-section mattress base with comfortable wooden slats
  • Motors: Splash water protection to IPX4, high-quality spiral cable with strain relief and kink protection, SMPS plug-in transformer with safety extra-low voltage and therefore safety from the socket.

Technical data

Technical data domiflex® 3:

  • Total weight: approx. 71 kg
  • Sleeping surface dimensions: 90 x 200 cm, optional: 100 x 200 cm
  • External dimensions with 90 cm wide mattress base: 101 × 210.7 cm
  • Safe working load: 190 kg
  • Max. Max. person weight: 155 kg
  • Height adjustment: 35 - 80 cm
  • Lift height: > 15 cm
  • Height of safety sides: 37 cm with spring wooden slats, can be combined with mattress heights up to 16 cm
  • Accessory numbers
    • Width 90 cm:
      • 155kg max. person weight:
        • Krankenpflegeartikel: 19.40.01.3044
        • Pflegehilfsmittel: 50.45.01.1083
      • 185kg max. person weight:
        • Krankenpflegeartikel: 19.40.01.3047
        • Pflegehilfsmittel: 50.45.01.1085
    • Width 100 cm:
      • 155kg max. person weight:
        • Krankenpflegeartikel: 19.40.01.3048
        • Pflegehilfsmittel: 50.45.01.1086
      • 185kg max. person weight:
        • Krankenpflegeartikel: 19.40.01.3046
        • Pflegehilfsmittel: 50.45.01.1087

For technical data of our other variants domiflex® 3 plus and domiflex® 3 plus low, please consult our instructions for use.

Safety guarantees:

  • Primary fuse in the mains plug
  • Secondary fuse/polyswitch
  • Thermal fuse
  • Locking device
  • Special spiral power cable
  • Strain relief on power cable and kink protection
  • IPX4 moisture protection
  • Torsion-free, highly stable side safety bars

Choice of decors

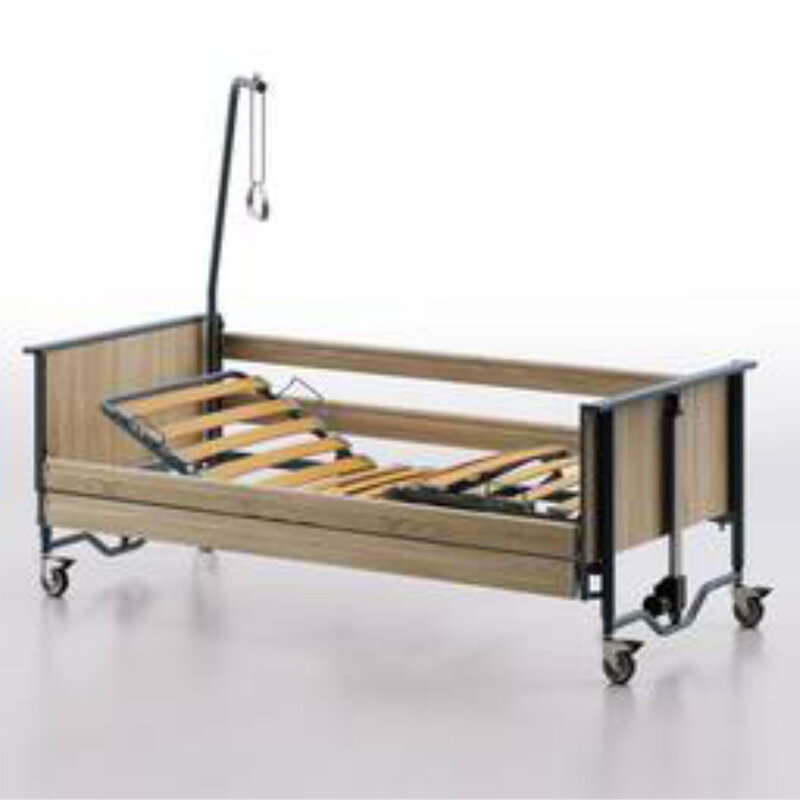

Sonoma oak

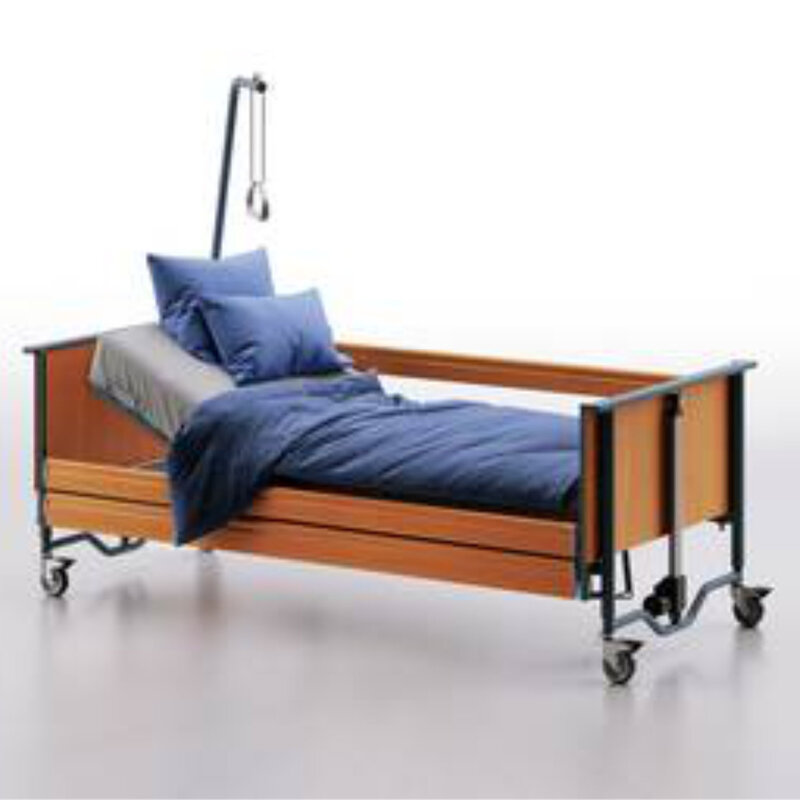

Beech steamed

How to reach us

All videos at a glance

 All videos at a glance

Downloads

All information at a glance

Here you will find product brochures, technical data and other information material on the domiflex® 3 as PDF files - easy to download, save or print.

Download link
