domiflex® 3
family

domiflex® 3
domiflex® 3
domiflex® 3
domiflex® 3
domiflex® 3
domiflex® 3

domiflex® 3 at a glance
Functions, advantages & possible applications

Advantages

Advantages of the domiflex® 3 nursing care bed:

  • 35 - 80 cm height adjustment range - Safe entry and exit thanks to optimal bed positioning
  • Ergonomic, wired hand control - With locking function and soft-touch buttons for a pleasant feel and intuitive operation
  • Two stylish decors - Choose between modern Sonoma Oak Light or classic Steamed Beech
    (the premium model domiflex® 3 plus comes always in Sonoma Oak Light)
  • Resilient and stable - Up to 155 kg patient weight as standard, safe working load up to 190 kg



Perfect for medical supply retailers:

  • Space-saving transport and storage system - NEW: bracket for a transport system that can be stored under the bed
  • Tool-free assembly & disassembly - Quick assembly and disassembly with NEW lighter components
  • Can be flexibly converted into a heavy-duty bed - Can be upgraded  to 185 kg patient weight / 220 kg safe working load
    by means of a reinforcement bar
  • Wide range of accessories - For optimum patient care
  • Bed extension to 220 cm - Tool-free and in a few simple steps
  • Optional washable version - for hygienic cleaning in professional healthcare environments



Why the domiflex® 3?

  • Ideal for the nursing care sector as well as  for private care at home
  • Ergonomic design for a maximum of comfort and safety
  • Easy transport, assembly and handling

Standard equipment

Standard equipment of the domiflex® 3 nursing care bed:

  • Lifting pole with triangular handle
  • Integrated, full-length side rails SR3 for optimum protection
  • Space-saving transport and storage system enabling an easy handling
  • Full panelling inside the bed

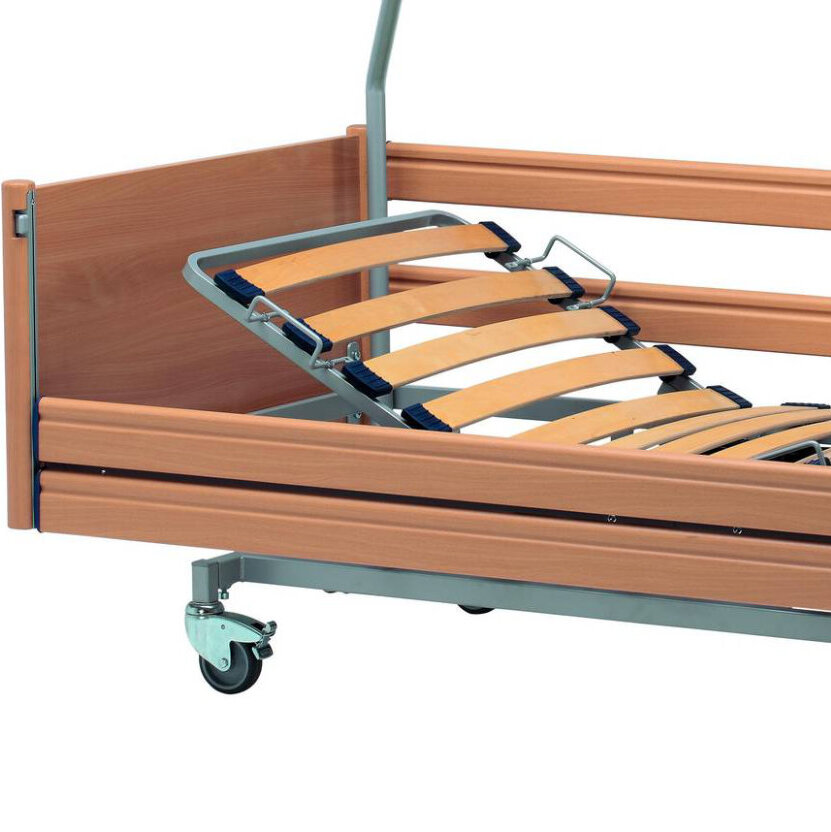

  • 4-section lying surface with comfortable wooden slats
  • Motors: Splash water protection according to IPX4, high-quality spiral cable with strain relief and kink protection,
    SMPS plug-in transformer with extra-low voltage - for maximum safety right from the socket

Technical data

Technical data domiflex® 3:

  • Total weight: approx. 72 kg
  • Lying surface dimensions: 90 x 200 cm, optional: 100 x 200 cm
  • External dimensions with 90 cm wide lying surface: 101 × 210.7 cm
  • Safe working load: 190 kg
  • Max. person weight: 155 kg
  • Height adjustment: 35 - 80 cm
  • Clearance for mobile patient lifters: > 15 cm
  • Side rail height: lying surfaces with wooden slats can be combined with mattress heights of up to 16 cm.
  • German medical aid classification number
    • Width 90 cm:
      • 155kg max. person weight:
        • Krankenpflegeartikel: 19.40.01.3044
        • Pflegehilfsmittel: 50.45.01.1083
      • 185kg max. person weight:
        • Krankenpflegeartikel: 19.40.01.3047
        • Pflegehilfsmittel: 50.45.01.1085
    • Width 100 cm:
      • 155kg max. person weight:
        • Krankenpflegeartikel: 19.40.01.3048
        • Pflegehilfsmittel: 50.45.01.1086
      • 185kg max. person weight:
        • Krankenpflegeartikel: 19.40.01.3046
        • Pflegehilfsmittel: 50.45.01.1087

For technical data relating to further product variants such as  domiflex® 3 plus and domiflex® 3 plus low, please refer to our instructions for use.

Safety features:

  • SMPS plug-in transformer with extra-low voltage - for maximum safety right from the socket, max. 35 VDC direct current
  • Power supply unit with primary fuse
  • Low heat generation of the transformer
  • Emergency lowering via 9V block batteries
  • Constant motor running speed up to the load limit
  • Low energy consumption in standby
    of max. 0.5 W
  • Strain relief on the mains cable with kink protection
  • Ergonomic bock cable hand control
  • Torsion-free, highly stable side rails
  • High-quality workmanship Made in Germany

Choice of decors

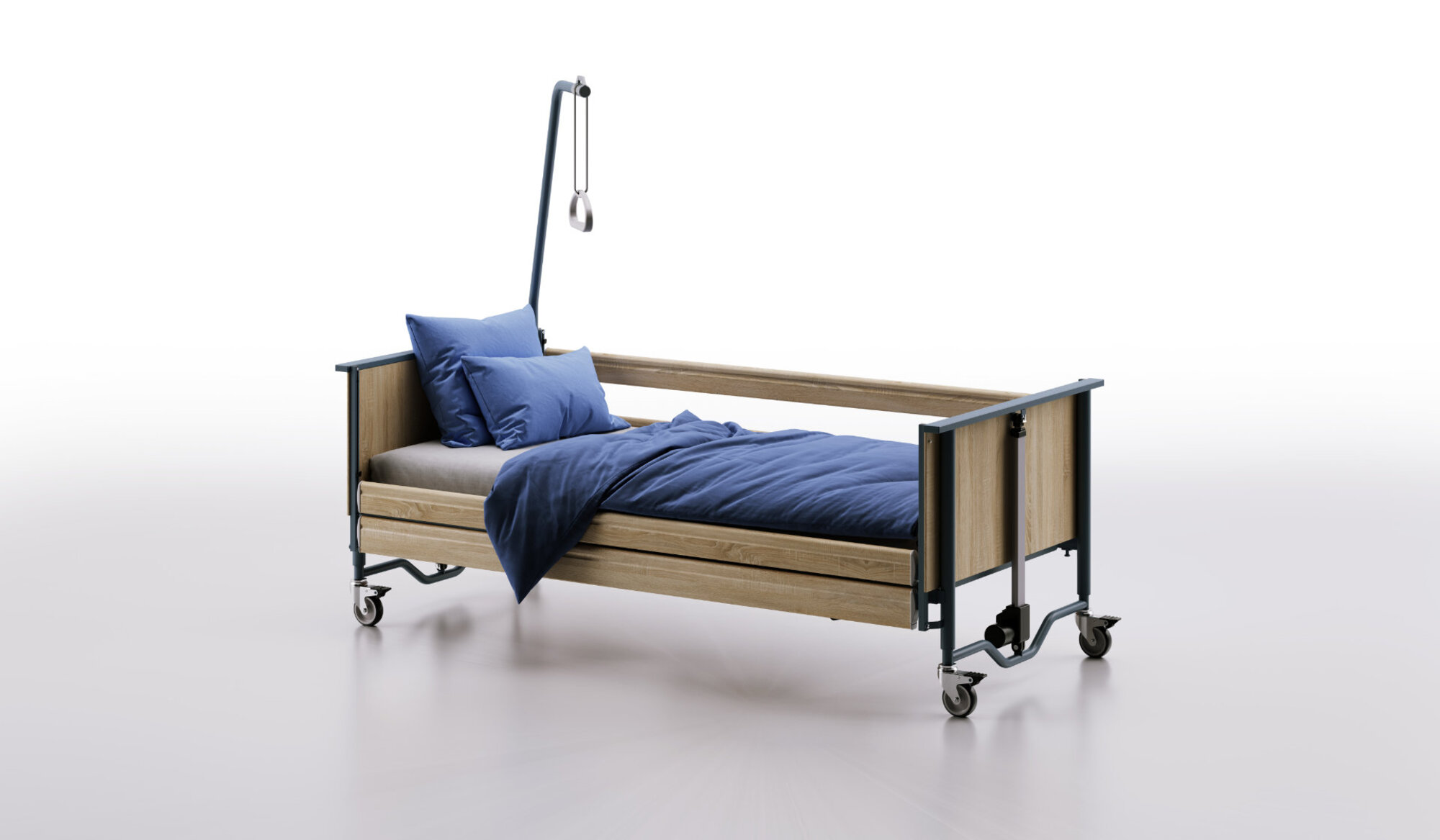

Sonoma Oak Light

  • Light, natural wood look - The mixture of beige and grey nuances fits perfectly with modern and classic furnishing styles.
  • Authentic grain - The fine wood structure ensures a realistic and elegant appearance.
  • Robust and easy to clean - The decorative surface is hard-wearing and easy to clean.
  • Versatile in combination - Also ideal for bedside tables and other furniture.

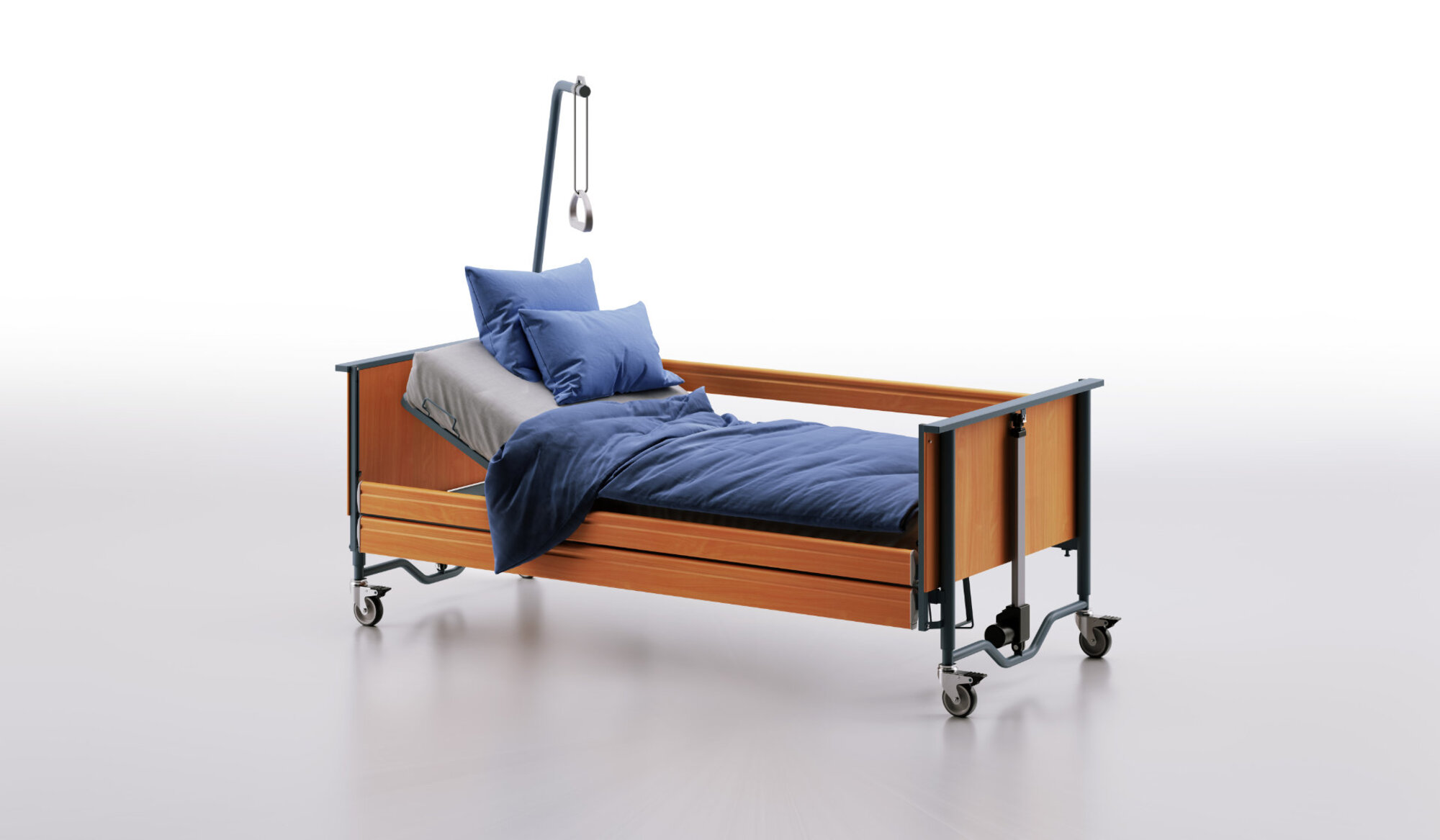

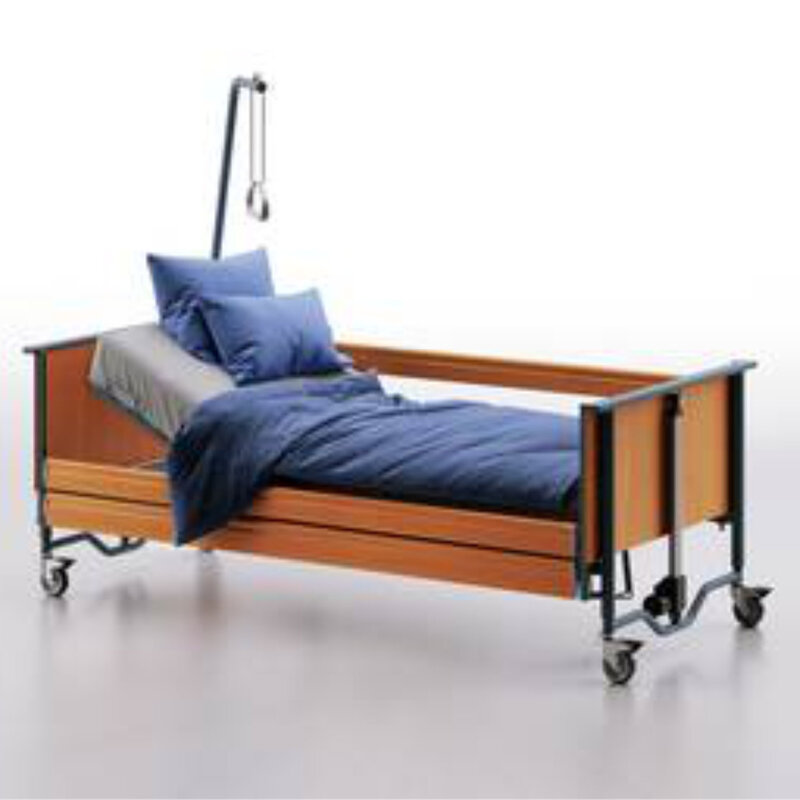

Steamed Beech

  • Warm, reddish colour - Ideal for a cosy and stylish living room design.
  • Fine, even grain - Gives furnishings an elegant look.
  • Robust and easy to clean - The decorative surface is hard-wearing and easy to clean.
  • Versatile in combination - Fits perfectly with modern and classic furnishing styles.

How to reach us

All videos at a glance

Downloads

All information at a glance

Here you will find manuals, product brochures, technical data sheets and other information material for the domiflex® 3 - available as PDF files for easy download, saving or printing.
